Assist MAX Power Battery

Assist MAX Power Battery

SKU: FD101

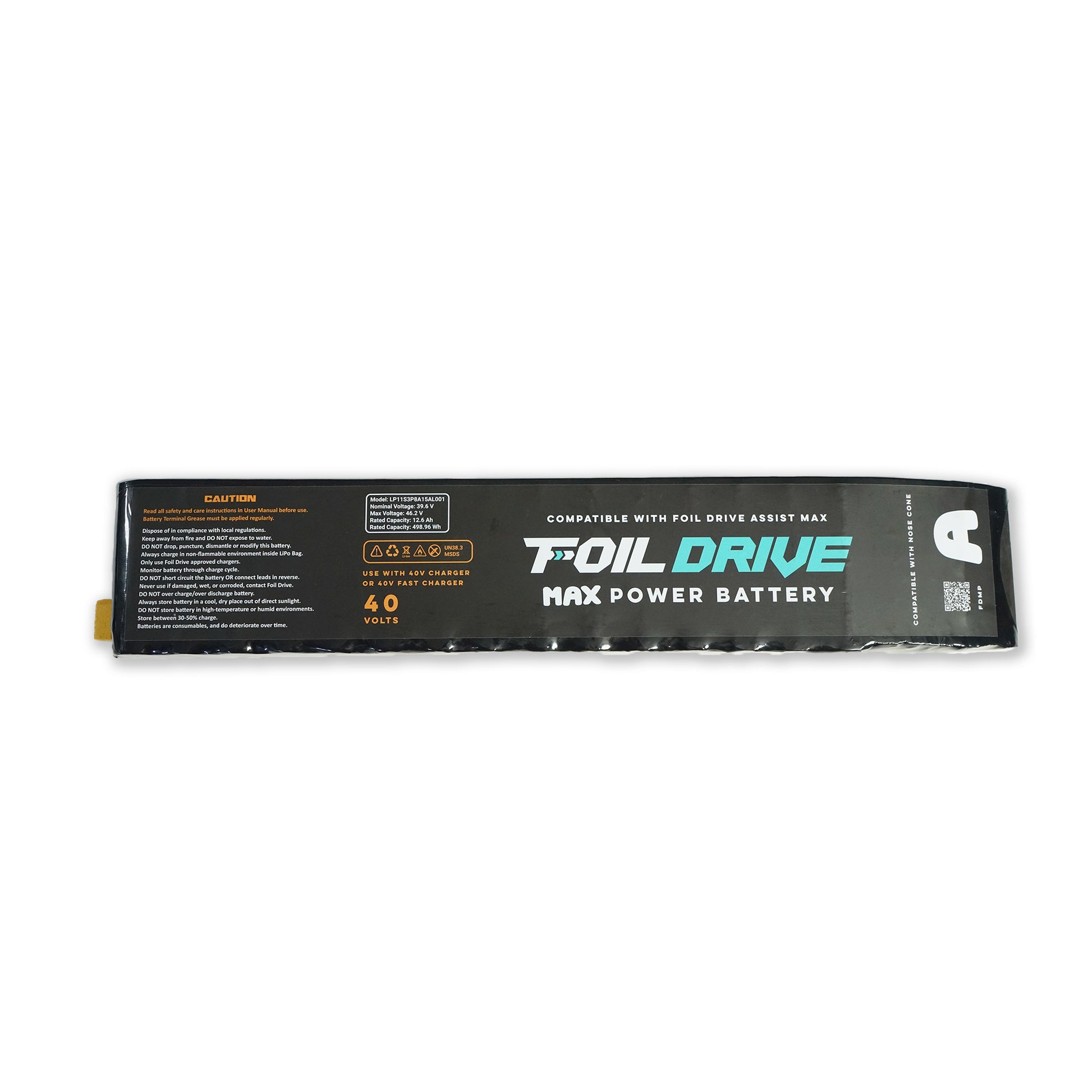

The Foil Drive MAX Power Battery offers 498Wh capacity. This offers the longest run time for those looking for high power performance.

As with all Gen2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

It is important to properly care for your Foil Drive battery. Click here to learn about lithium battery use, care and storage.

Click here to learn about the differences between our Gen1 and Gen2 batteries.

Not sure which battery to choose? Compare Below

$834.90 USD
$834.90 USD
Tech Specs
icon
  • Battery Type: Lithium-Ion, designed exclusively for Foil Drive Assist MAX.
  • Capacity & Weight:
    Rated Capacity: 12.6 Ah / 498.96 Wh
    Nominal Voltage: 39.6 V
    Max Voltage: 46.2 V
    Battery Weight: 2.65 kg (5.84 lbs)
    Battery Density: 184 Wh/kg
  • Dimensions:
    Assist MAX Power (bare): 420 × 75 × 40 mm
    Assist MAX Power (in bag): 440 × 100 × 60 mm
  • Safety & Durability:
    IP68-rated for water and dust protection
    Certifications: UN, CE
    Single power plug with large connectors for Foil Drive unit and smaller connectors for charging
    Includes dust cap for storage and transport
  • Performance:
    Maximum boost: 24%
    Max boost time: 18 seconds
  • Note: Only compatible with Foil Drive Assist MAX. Proper care is essential for battery longevity. Learn about battery use, care, and storage. See differences between Gen1 and Gen2 batteries.
What’s Included
icon

1x Foil Drive MAX Power Battery

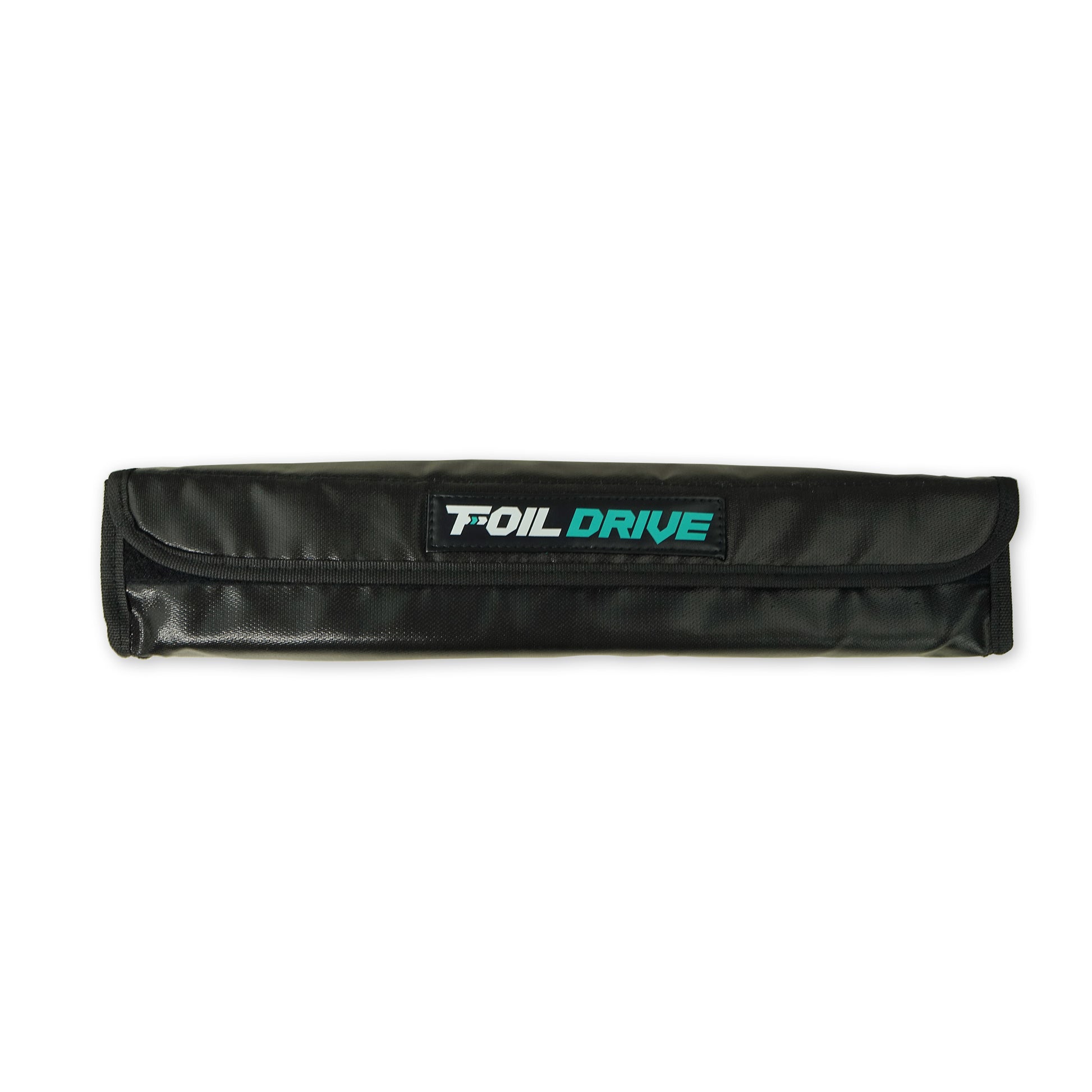

1x Lipo Bag
1x Power Plug Dust Cap
Compare Batteries
Compare up to four batteries to find the right one for you.

BATTERY COMPARISON

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

SHOW BATTERY TECH SPECS

Battery voltage
Determines power output and acceleration potential
-
-
-
-
Battery capacity
Affects ride time and session length
-
-
-
-
Battery dimensions
Influences fit, hydrodynamics, and drag
-
-
-
-
Battery weight
Impacts portability and on-water agility
-
-
-
-
Energy density
This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight
-
-
-
-
Airline compliant
Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.
-
-
-
-
Water & dust resistance rating
Impacts portability and on-water agility
-
-
-
-

Battery voltage

Determines power output and acceleration potential
-
-
-
-

Battery capacity

Affects ride time and session length
-
-
-
-

Battery dimensions

Influences fit, hydrodynamics, and drag
-
-
-
-

Battery weight

Impacts portability and on-water agility
-
-
-
-

Energy density

This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight
-
-
-
-

Airline compliant

Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.
-
-
-
-

Water & dust resistance rating

Impacts portability and on-water agility
-
-
-
-

HIDE BATTERY TECH SPECS
