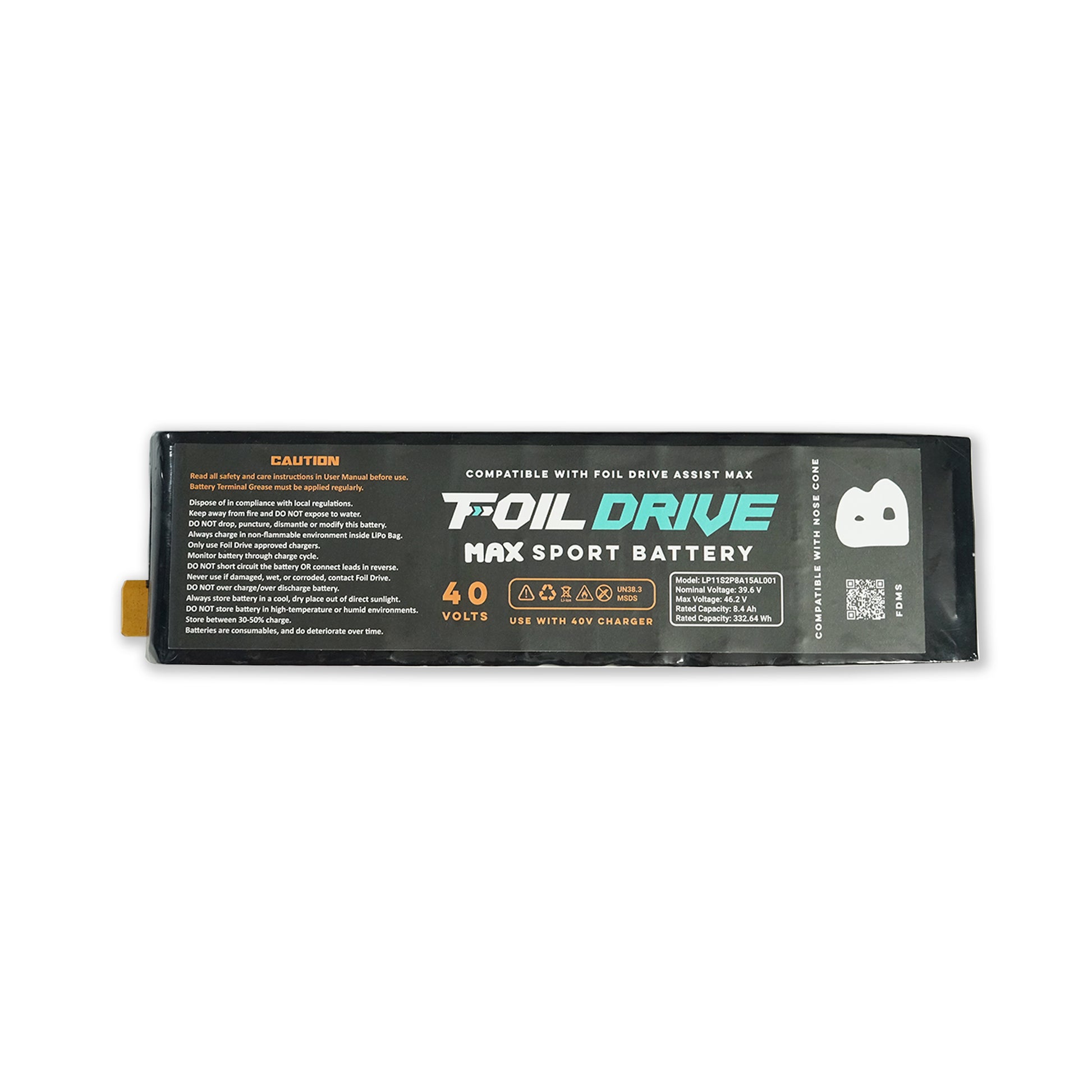

MAX Sport Battery

MAX Sport Battery

SKU: FD102

The Foil Drive MAX Sport Battery is the smaller, lighter MAX battery with 332Wh capacity. This offers Assist MAX users the ability to reduce the weight of their install for those riders looking for ultimate performance at the cost of reduced runtime.

As with all Gen2 Foil Drive batteries, the MAX Sport Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Maximum boost: 20%
Max boost time:  15 seconds

Only compatible with Foil Drive Assist MAX.

It is important to properly care for your Foil Drive batteries. Click here to learn more about lithium battery use, care and storage.

Click here to learn about the difference between our Gen1 and Gen2 batteries.

Not sure which battery to choose? Compare Below

$531.30 USD
$531.30 USD
Tech Specs
icon
  • Nominal Voltage: 39.6 V
  • Max Voltage: 46.2 V
  • Rated Capacity:  8.4 Ah
  • Rated Capacity: 332.64 Wh
  • Battery Weight: 1.85kg (4lbs)
  • Certifications: UN, CE, IP68
  • Battery Dimensions: (As is)
  • Assist MAX Sport: 290x75x40
  • Assist MAX Sport in Bag: 340x100x60
  • Battery Density: 179 Wh/kg
What’s Included
icon

Foil Drive MAX Sport Battery
Lipo Bag
Power Plug Dust Cap

Compatible With
icon

Assist MAX
FAST Charger

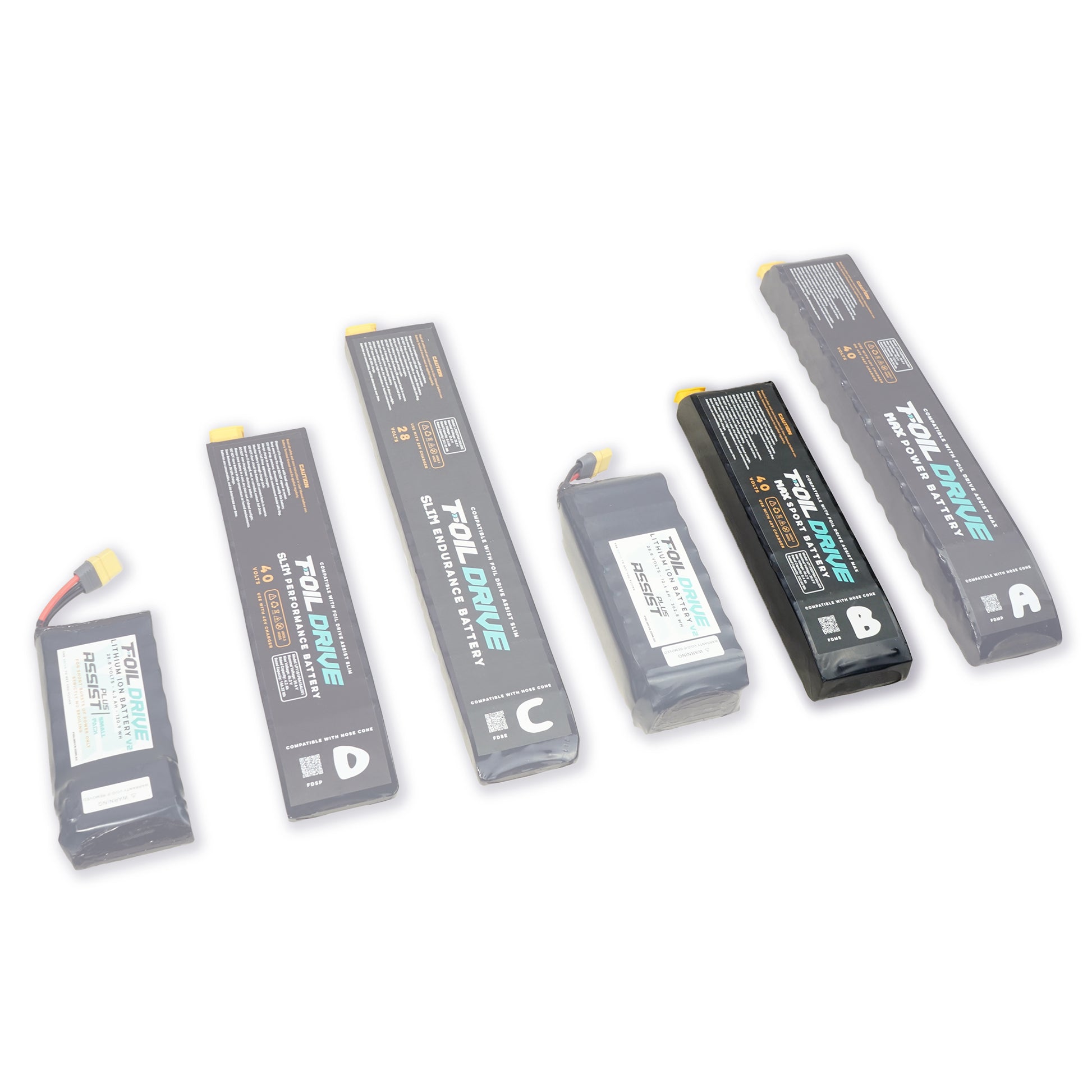

Compare Batteries
Compare up to four batteries to find the right one for you.

BATTERY COMPARISON

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

Select a battery...

SHOW BATTERY TECH SPECS

Battery voltage
Determines power output and acceleration potential
-
-
-
-
Battery capacity
Affects ride time and session length
-
-
-
-
Battery dimensions
Influences fit, hydrodynamics, and drag
-
-
-
-
Battery weight
Impacts portability and on-water agility
-
-
-
-
Energy density
This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight
-
-
-
-
Airline compliant
Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.
-
-
-
-
Water & dust resistance rating
Impacts portability and on-water agility
-
-
-
-

Battery voltage

Determines power output and acceleration potential
-
-
-
-

Battery capacity

Affects ride time and session length
-
-
-
-

Battery dimensions

Influences fit, hydrodynamics, and drag
-
-
-
-

Battery weight

Impacts portability and on-water agility
-
-
-
-

Energy density

This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight
-
-
-
-

Airline compliant

Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.
-
-
-
-

Water & dust resistance rating

Impacts portability and on-water agility
-
-
-
-

HIDE BATTERY TECH SPECS
