Foil Drive Assist Slim x AFS Infinity Carbon Integrated Mast Bundle

Name: Foil Drive Assist Slim x AFS Infinity Carbon Integrated Mast Bundle
Brand: Foil Drive Americas Inc
Price: 5123.80 USD
Availability: InStock

Foil Drive Assist Slim x AFS Infinity Carbon Integrated Mast Bundle

SKU:

All the required Foil Drive components to go with a AFS Carbon Integrated Mast.

The Foil Drive Assist SLIM × AFS Bundle brings together a compact foil-assist system and the clean performance of the AFS INFINITY 80 integrated carbon mast. It is a refined, streamlined setup for riders who want the freedom to access more waves while retaining a direct, natural feel underfoot.

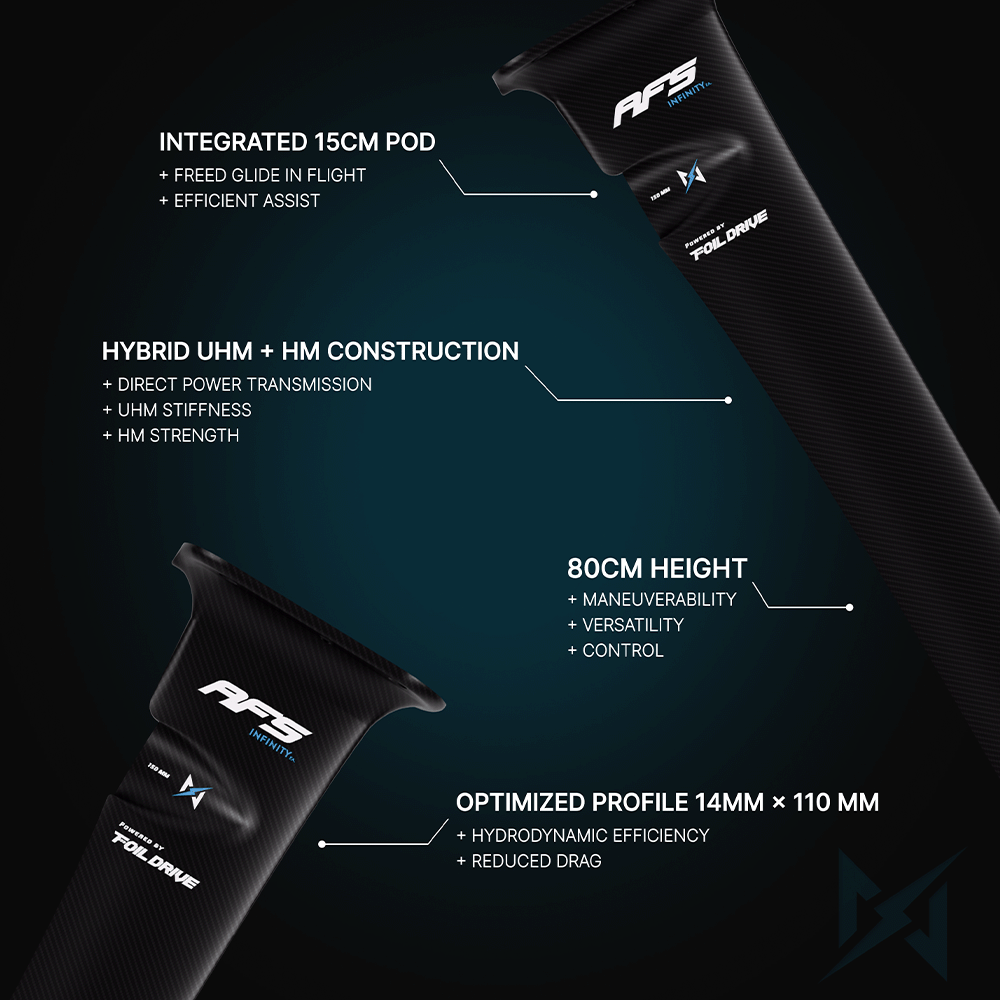

The AFS INFINITY 80 is engineered specifically around Foil Drive, with concealed cable routing, a dedicated mount and a motor pod positioned 150 mm below the plate. Once you are flying, reduced drag and precise carbon response keep the focus on the wave.

Note: This DOES NOT include the AFS Carbon Integrated Mast itself, please see your local AFS Dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

A great bundle to suit your AFS Carbon Integrated Mast is:

$5,123.80 USD

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

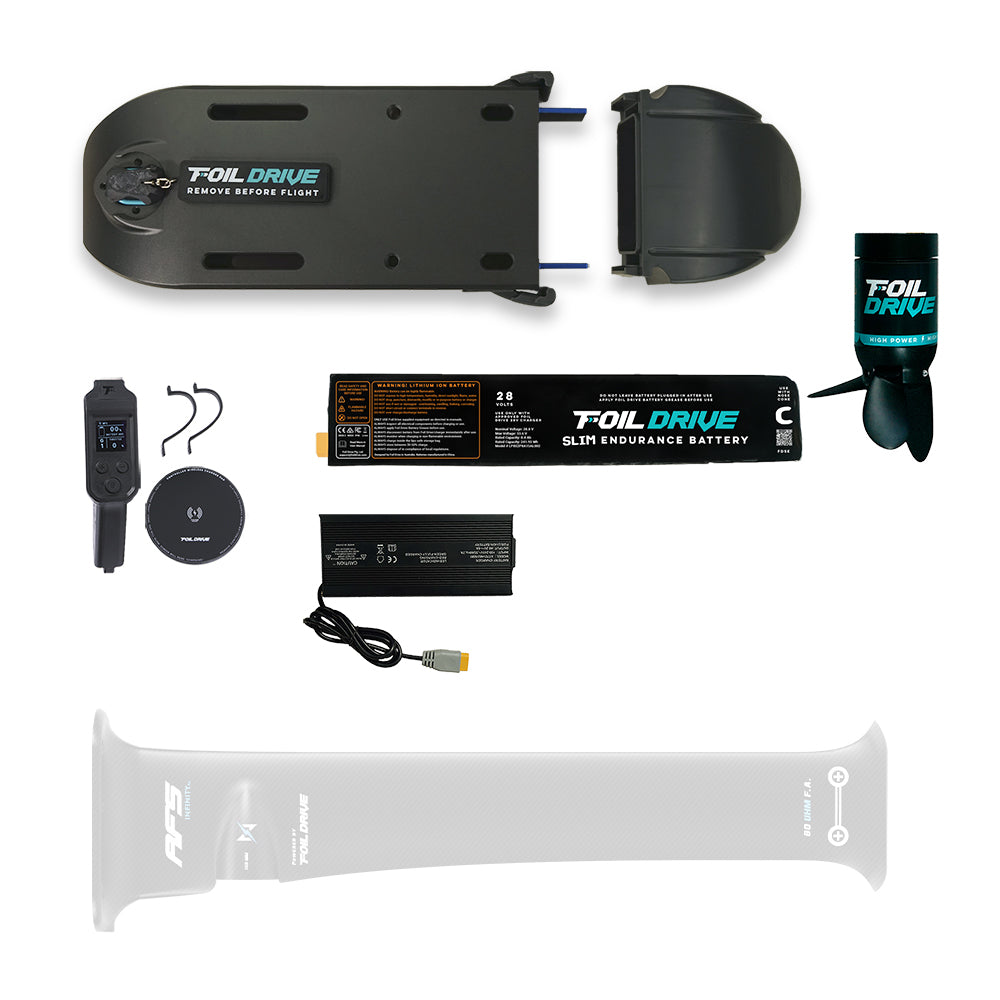

What’s Included

icon

Foil Drive Assist Slim
SLIM Endurance Battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 80mm
4x M6 Assist Slim Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
