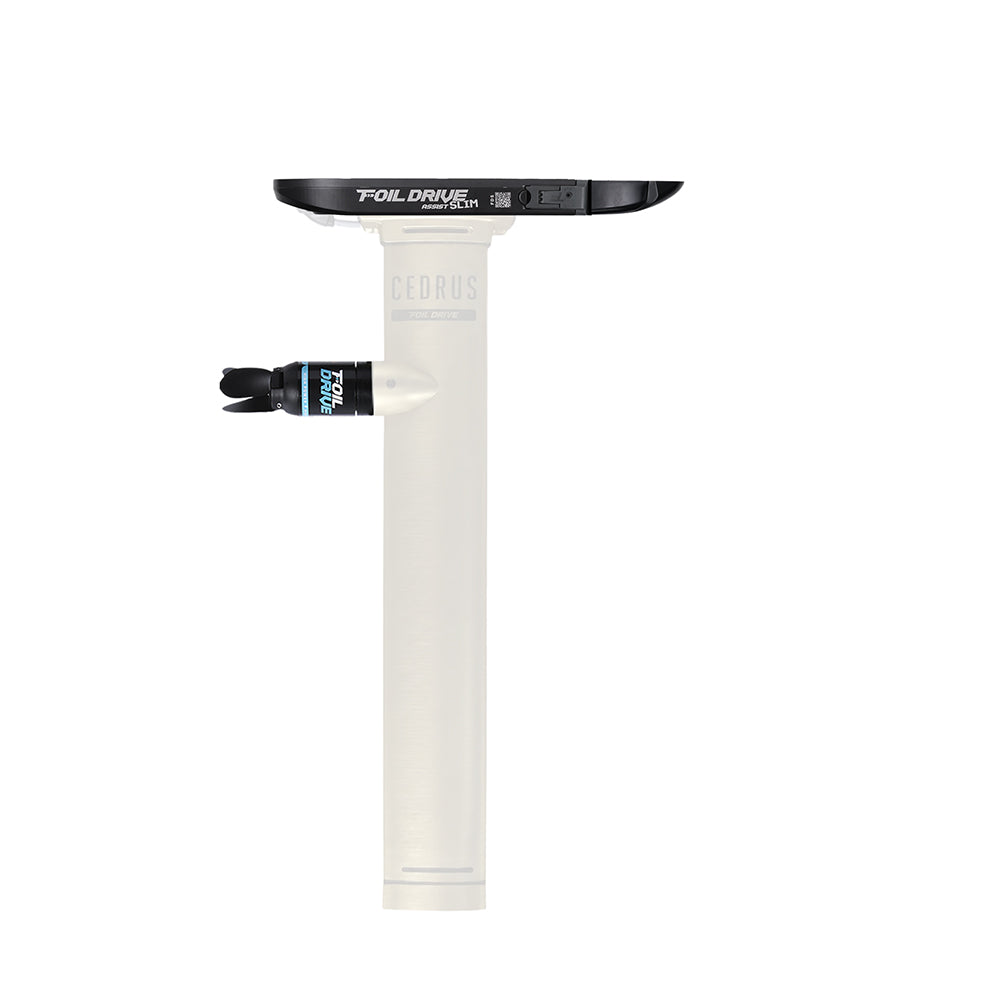

Foil Drive Assist Slim x Foil Cedrus Aluminum Integrated Mast Bundle

Name: Foil Drive Assist Slim x Foil Cedrus Aluminum Integrated Mast Bundle
Brand: Foil Drive Americas Inc
Price: 5123.80 USD
Availability: InStock

Foil Drive Assist Slim x Foil Cedrus Aluminum Integrated Mast Bundle

SKU:

The Foil Drive Assist Slim x Foil Cedrus Aluminum Integrated Mast Bundle pairs the lightweight, minimalist Assist Slim system with Cedrus' renowned universal mast platform with seamless Foil Drive integration, creating one of the cleanest, stiffest and most versatile foil assist setups available.

Choose your preferred Foil Cedrus Aluminium Integrated Mast, then pair it with this bundle to build your ideal ride.

Note: This DOES NOT include the Foil Cedrus Aluminum Integrated Mast itself, please see your local Foil Cedrus Dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted.

All the required Foil Drive components to go with a Foil Cedrus Aluminum Integrated Mast. Please see the full product listings for product details, linked in the copy below.

The perfect Assist Slim bundle to suit your Foil Cedrus Integrated Mast is:

$5,123.80 USD

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

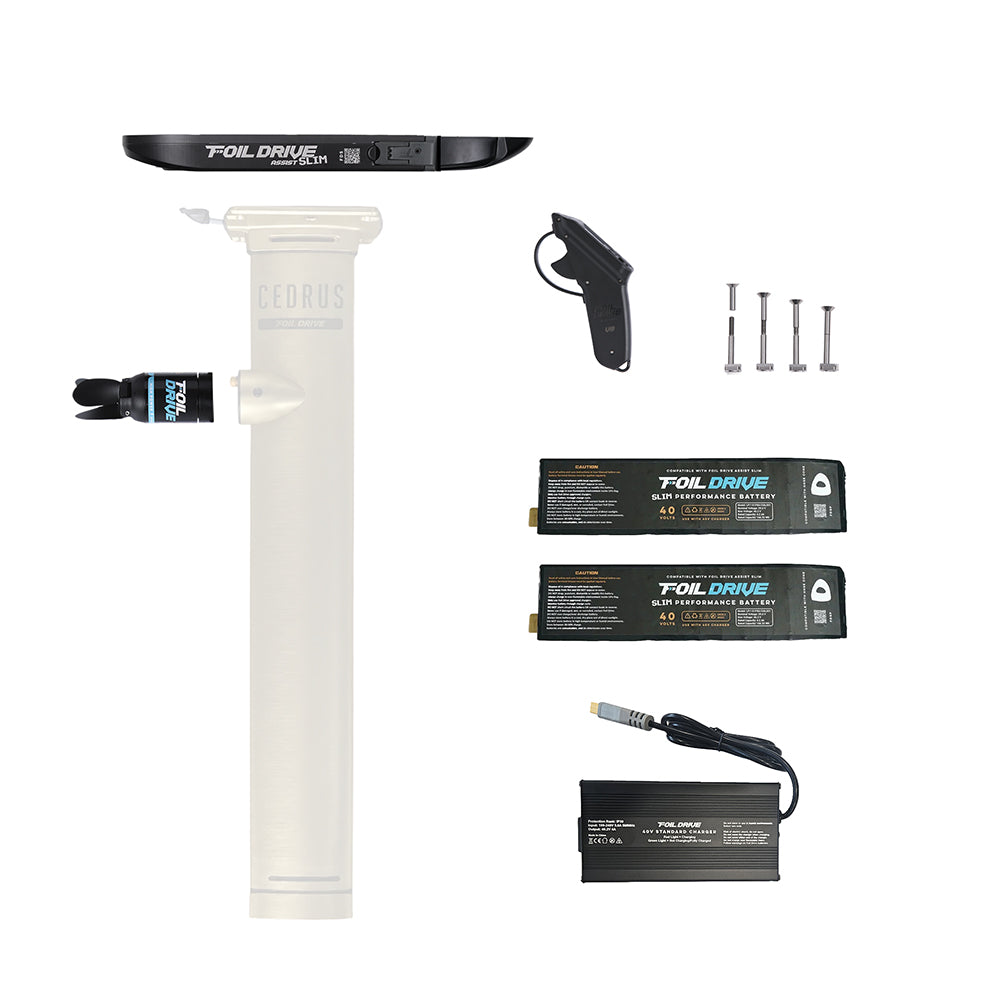

What’s Included

icon

Foil Drive Assist Slim
SLIM Endurance Battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 80mm
4x M6 Assist Slim Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
