Foil Drive Assist Slim x Slingshot One-Lock V2 Integrated Mast Bundle

SKU:

The Foil Drive Assist Slim x Slingshot One-Lock V2 Integrated Mast Bundles the smaller, lighter, performance-oriented model in the Foil Drive range, delivering efficient hybrid electric assist for advanced riders. Despite its compact size, it provides ample thrust to help you get onto the foil faster and ride more efficiently. It’s perfect for high-performance surf, wing, and downwind foilers who prioritize low weight and maneuverability over extended battery runtime.

With the motor fully internal, the Assist Slim setup streamlines installation, reduces drag, and provides a smooth, responsive boost ideal for advanced riders or those seeking a refined, lightweight foiling experience. The clean, pre-installed design ensures effortless transition between powered and unpowered riding while maintaining the sleek profile of the mast.

Note: Motor Position is fixed and cannot be adjusted.

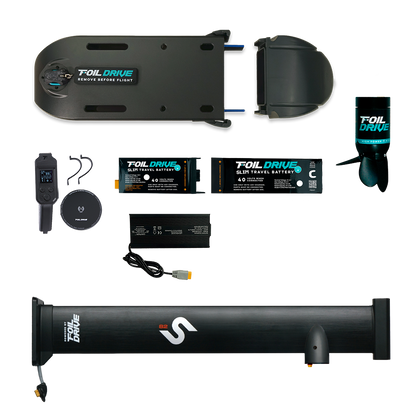

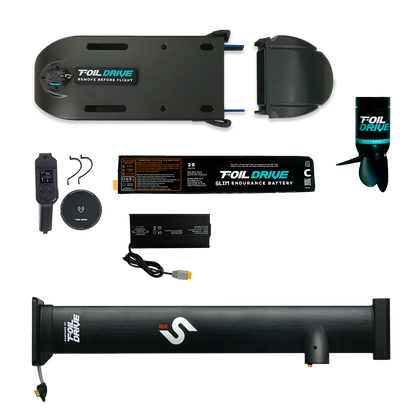

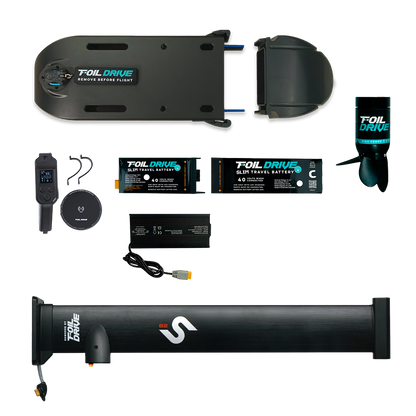

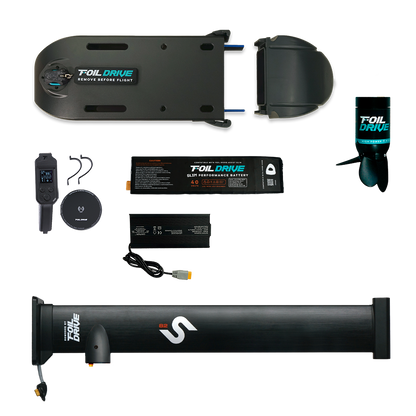

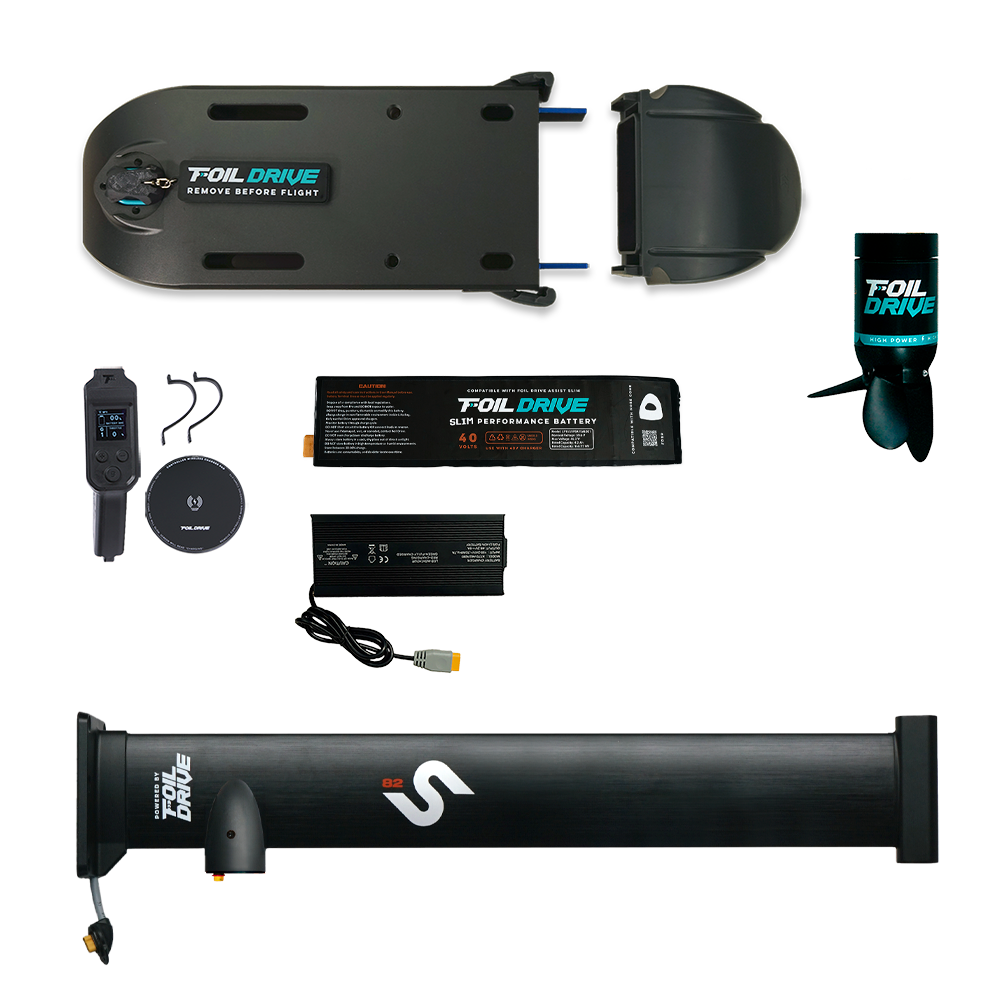

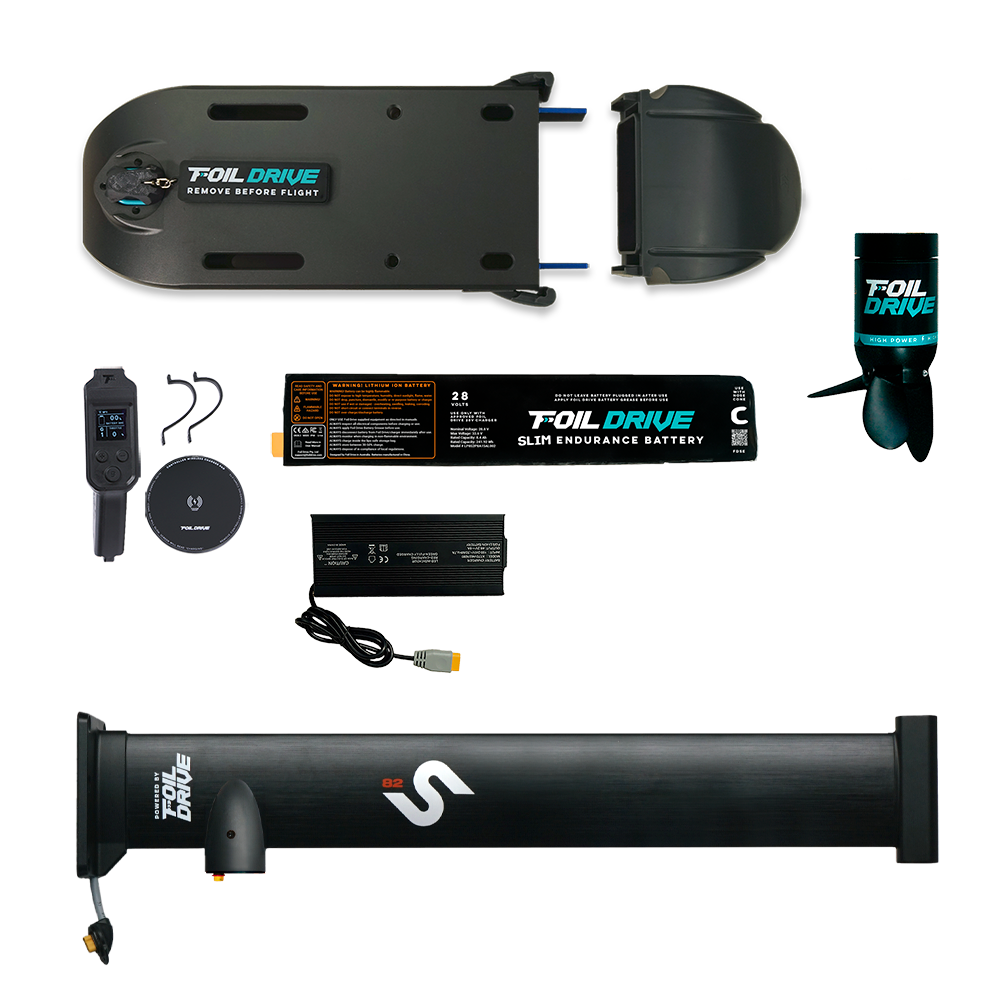

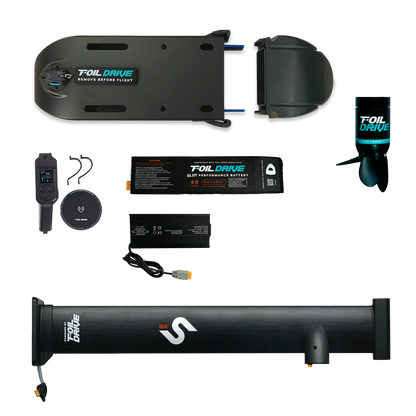

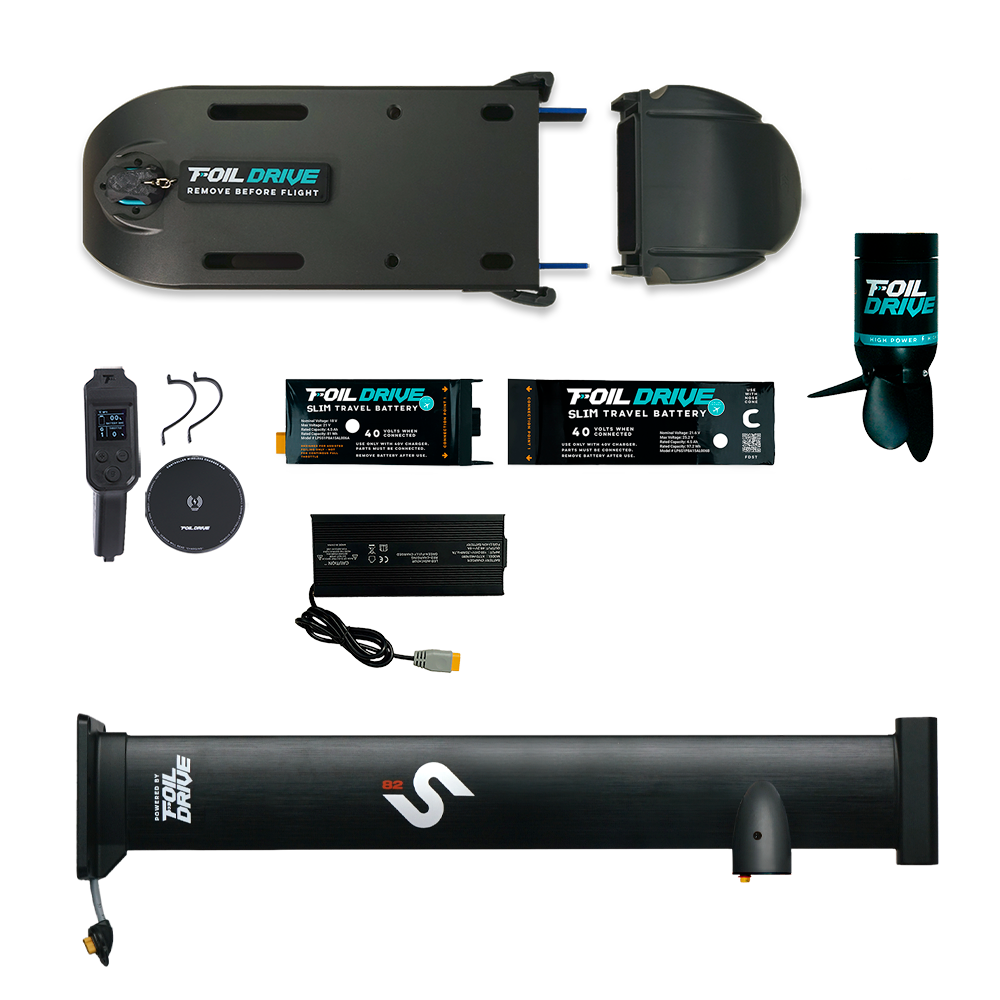

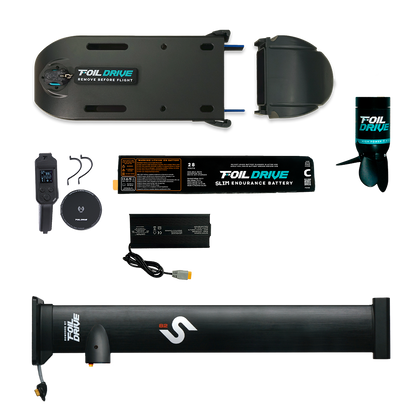

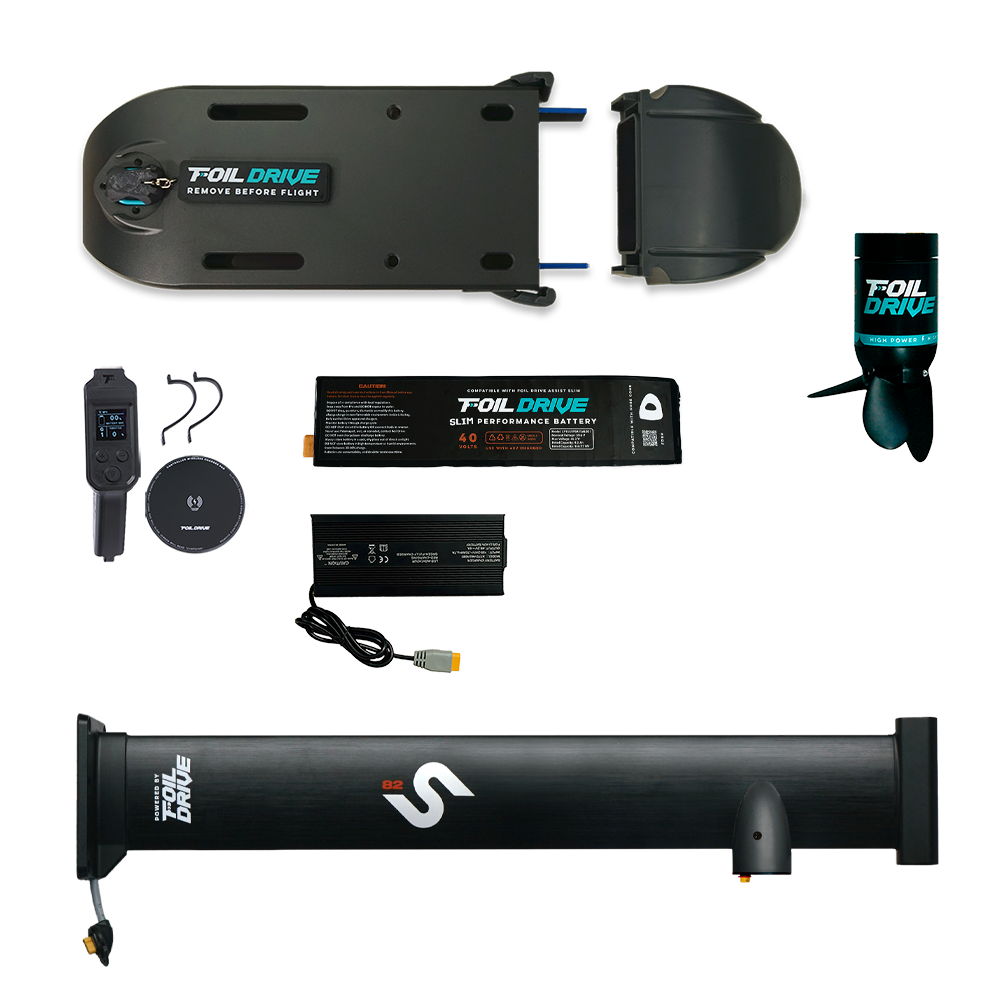

This bundle includes:

Foil Drive Assist Slim
Chosen Slim battery
Foil Drive x Slingshot One-Lock V2 Integrated Mast
Integrated Mast High Power Motor

Choose Your Motor Height View Motor guide

17cm / 7"

E-foil / 70cm / 27.5"

Choose Your Battery View Battery guide

Slim Performance X 2

Slim Endurance (28v charger not Included)

Slim Travel

$6,174.60 USD

Details

icon

17cm Assist: The 17cm position a unique position for Slingshot, designed to be perfect for both beginner and intermediate assisted foilers. Motor Position is measured from the center of the pod to the bottom of the mast foot, the Assist position useful for short bursts of power to get on foil, the totally disappears to utilize natural elements like wind or waves to sustain your foiling. The motor height allows you to "surface motor" to the lineup, or upwind, without risk of your board touching down, while remaining close enough to the board to not interfere with your ride once on foil. The Assist Mast mast delivers clean lift, reduced drag, and efficient, responsive performance with controlled electric assist. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.

Efoil: Efoil Motor is designed for leisure foiling, flatwater cruising and experimenting with your foils in new ways. Cruise at sunset, or push the limits of your foils in a controlled environment.

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

What’s Included

icon

Foil Drive Assist Slim
Chosen battery
Foil Drive x Slingshot One-Lock V2 Integrated Mast
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 80mm
4x M6 Assist Slim Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With

icon

Assist Slim
Slingshot Foils
